Strength - X-Tend - Abdominal

    Abdominal Machine

    Abdominal Machine
    Abdominal Machine

    Model : JXCR-601

    This machine is designed to imitate a floor crunch while targeting the lower abdominal muscles. The machine makes sure of the body’s axis alignment for a biomechanically correct position. The Being Strong Abdominal provides a maximum weight of up to 220 lbs.

    • Length : 53 inches/135cms
    • Width : 45 inches/114cms
    • Height : 59 inches/150cms
    • Strong Built

      Strong Built

    • Strong Built

      Top Quality

    • Be the first to review this product

    How do you rate this product? *

    • How You Can Use It with Safety
    Being Strong
    Based on 6 comments -
    Write a comment

    Upholstery Colors

    Frame Colors

    Add to Wishlist Add to Cart Buy Now

    Comparison - Chest

    Reform

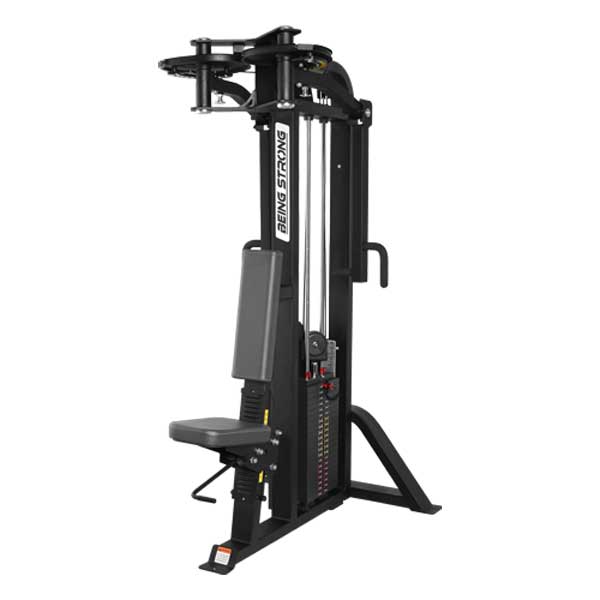

    Pec Fly / Rear Delt (JRC - 1010)
    Dimension
    Length : 60 inches/152cms
    Width : 68 inches/173cms
    Height : 82 inches/208cms
    Frame
    50mm x 50mm & 50mm x 100mm
    10/12 Gauge
    Square & Rectangular Tubes
    All the loading joints connected parts have been given an extra 5mm plate for fail proof safety.
    Weight Stack
    165 Lbs. 1" thick Bright Mild Steel Plates with 2 free-floating Nylon Bushings
    Shroud
    High Grade 1.5mm CRC Sheets laser cut in half-length, covers rear side of the weight stack for safety.
    Pulley
    3", 4" & 5" Diameter, "V" grooved fiber glass reinforced nylon pulley wheels with sealed friction free precision ball bearings mounted in safety housings.
    Cables
    Industrial strength 3/16" to 1/4" nylon coated cables with 4200 lbs. load capacity.
    Laser Cutting
    Computer operated laser cutting, marking and drilling, Punching, degree cutting, notching with all in one 3D laser cutting machine.
    Guide Rod
    3/4" thick solid Induction Hardened Rods of 50 to 60 HRC are secured with nylon bushings to allow free-foating movements of weight plates on guide rods.
    Robotic Welding
    Fully automatic robotic welding that improves weld accuracy for rugged fail-proof strength.
    Powder-Coat Finish
    Fully computer operated conveyorbased 14 tank process with zinc coating inside/outside and finished with an electro-statically applied textured powder coating, having an average thickness of 80 to 100 microns. The Antimicrobial Technology that is active in the coating destroys up to 99% of bacteria and mold on a protected surface.
    Upholstery
    Ergonomically designed superior grade upholstery with 2" thick high density molded PU foam designed independently as per the functionality of the machine and available in a large range of colours.
    Seat Adjustment
    Spring loaded pop pin knob for seat adjustment.


    Warranty
    All frames carry 10 years warranty from the date of installation.
    Certification
    Club Line
    Pec Fly / Rear Delt (JC - 101)
    Dimension
    Length : 60 inches/152cms
    Width : 68 inches/173cms
    Height : 82 inches/208cms
    Frame
    50mm x 50mm & 50mm x 100mm
    10 Gauge
    Rectangular Tubes
    All the loading joints connected parts have been given an extra 5mm plate for fail proof safety.
    Weight Stack
    220 Lbs. 1" thick Bright Mild Steel Plates with 2 free-floating Nylon Bushings
    Shroud
    High Grade 1.5mm CRC Sheets laser cut in half-length, covers rear side of the weight stack for safety.
    Pulley
    3", 4" & 5" Diameter, "V" grooved fiber glass reinforced nylon pulley wheels with sealed friction free precision ball bearings mounted in safety housings.
    Cables
    Industrial strength 3/16" to 1/4" nylon coated cables with 4200 lbs. load capacity.
    Laser Cutting
    Computer operated laser cutting, marking and drilling, Punching, degree cutting, notching with all in one 3D laser cutting machine.
    Guide Rod
    3/4" thick solid Induction Hardened Rods of 50 to 60 HRC are secured with nylon bushings to allow free-foating movements of weight plates on guide rods.
    Robotic Welding
    Fully automatic robotic welding that improves weld accuracy for rugged fail-proof strength.
    Powder-Coat Finish
    Fully computer operated conveyorbased 14 tank process with zinc coating inside/outside and finished with an electro-statically applied textured powder coating, having an average thickness of 80 to 100 microns. The Antimicrobial Technology that is active in the coating destroys up to 99% of bacteria and mold on a protected surface.
    Upholstery
    Ergonomically designed superior grade upholstery with 2" thick high density molded PU foam designed independently as per the functionality of the machine and available in a large range of colours.
    Seat Adjustment
    Polypropylene Rack - In - Pinion mechanism for high strength to weight ratio and excellent abrasion resistant movement.
    Warranty
    All frames carry 10 years warranty from the date of installation.
    Certification
    Club Line Plus
    Pec Fly / Rear Delt (JPC - 101)
    Dimension
    Length : 60 inches/152cms
    Width : 68 inches/173cms
    Height : 82 inches/208cms
    Frame
    50mm x 50mm & 50mm x 100mm
    10 Gauge
    Rectangular Tubes
    All the loading joints connected parts have been given an extra 5mm plate for fail proof safety.
    Weight Stack
    220 Lbs. 1" thick Bright Mild Steel Plates with 2 free-floating Nylon Bushings
    Shroud
    High Grade 1.5mm CRC Sheets laser cut in half-length, covers rear side of the weight stack for safety.
    Pulley
    3", 4" & 5" Diameter, "V" grooved fiber glass reinforced nylon pulley wheels with sealed friction free precision ball bearings mounted in safety housings.
    Cables
    Industrial strength 3/16" to 1/4" nylon coated cables with 4200 lbs. load capacity.
    Laser Cutting
    Computer operated laser cutting, marking and drilling, Punching, degree cutting, notching with all in one 3D laser cutting machine.
    Guide Rod
    3/4" thick solid Induction Hardened Rods of 50 to 60 HRC are secured with nylon bushings to allow free-foating movements of weight plates on guide rods.
    Robotic Welding
    Fully automatic robotic welding that improves weld accuracy for rugged fail-proof strength.
    Powder-Coat Finish
    Fully computer operated conveyorbased 14 tank process with zinc coating inside/outside and finished with an electro-statically applied textured powder coating, having an average thickness of 80 to 100 microns. The Antimicrobial Technology that is active in the coating destroys up to 99% of bacteria and mold on a protected surface.
    Upholstery
    Ergonomically designed superior grade upholstery with 2" thick high density molded PU foam designed independently as per the functionality of the machine and available in a large range of colours.
    Seat Adjustment
    Polypropylene Rack - In - Pinion mechanism for high strength to weight ratio and excellent abrasion resistant movement.
    Warranty
    All frames carry 10 years warranty from the date of installation.
    Certification
    X-Tend
    Pec Fly / Rear Delt (JXC - 101)
    Dimension
    Length : 60 inches/152cms
    Width : 68 inches/173cms
    Height : 82 inches/208cms
    Frame
    50mm x 50mm & 50mm x 100mm
    10 Gauge
    Oval Tubes
    All the loading joints connected parts have been given an extra 5mm plate for fail proof safety.
    Weight Stack
    220 Lbs. 1" thick Bright Mild Steel Plates with 2 free-floating Nylon Bushings
    Shroud
    High Grade 1.5mm CRC Sheets laser cut in half-length, covers rear side of the weight stack for safety.
    Pulley
    3", 4" & 5" Diameter, "V" grooved fiber glass reinforced nylon pulley wheels with sealed friction free precision ball bearings mounted in safety housings.
    Cables
    Industrial strength 3/16" to 1/4" nylon coated cables with 4200 lbs. load capacity.
    Laser Cutting
    Computer operated laser cutting, marking and drilling, Punching, degree cutting, notching with all in one 3D laser cutting machine.
    Guide Rod
    3/4" thick solid Induction Hardened Rods of 50 to 60 HRC are secured with nylon bushings to allow free-foating movements of weight plates on guide rods.
    Robotic Welding
    Fully automatic robotic welding that improves weld accuracy for rugged fail-proof strength.
    Powder-Coat Finish
    Fully computer operated conveyorbased 14 tank process with zinc coating inside/outside and finished with an electro-statically applied textured powder coating, having an average thickness of 80 to 100 microns. The Antimicrobial Technology that is active in the coating destroys up to 99% of bacteria and mold on a protected surface.
    Upholstery
    Ergonomically designed superior grade upholstery with 2" thick high density molded PU foam designed independently as per the functionality of the machine and available in a large range of colours.
    Seat Adjustment
    Polypropylene Rack - In - Pinion mechanism for high strength to weight ratio and excellent abrasion resistant movement.
    Warranty
    All frames carry 10 years warranty from the date of installation.
    Certification
    ×
